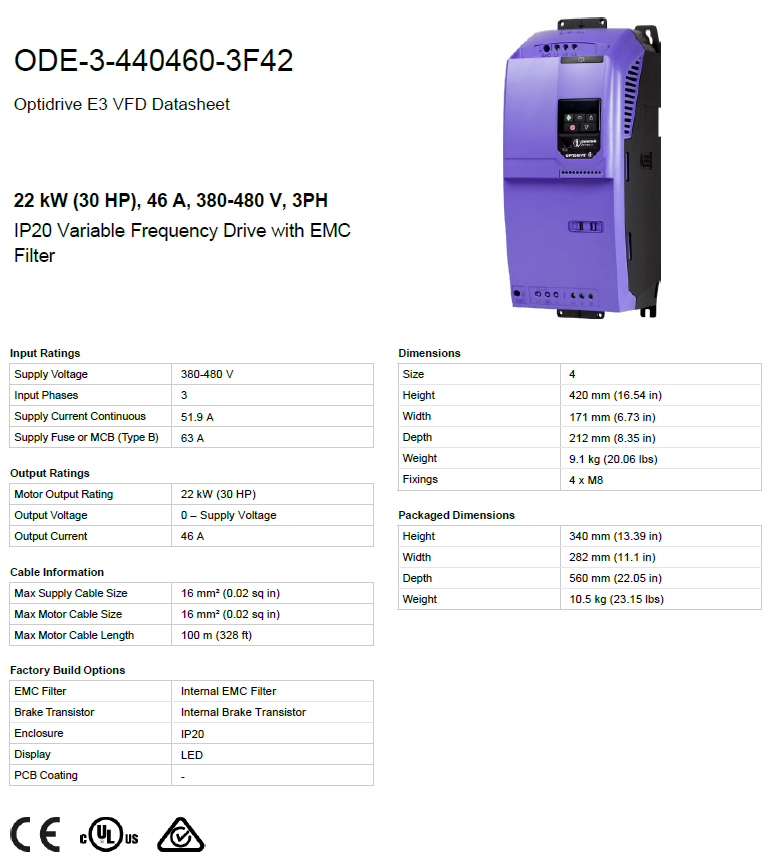

Invertek Optidrive E3 IP20 22 kW 3-Phase 400V AC Drive – ODE-3-440460-3F42
The highest power model in the legendary Optidrive E3 series – an ultra-compact 22 kW (30 HP) sensorless vector drive that still fits in the smallest panels.
Ideal for the most demanding applications: large pumps, high-power fans, compressors, cranes, winches, extruders, and heavy process machinery on 400 V three-phase supplies.
Key Features
Power rating: 22 kW (30 HP)
Input: 3-phase 380–480 V ±10% (50/60 Hz)
Output: 3-phase 0–480 V, 0–500 Hz
Rated output current: 46 A
Overload: 150% for 60 seconds
Control mode: V/F and Energy Optimised Sensorless Vector
Only 14 basic parameters – fastest commissioning available
Built-in dynamic brake chopper
Integrated PI controller and EMC filter (C2)
Modbus RTU & CANopen as standard
Multilingual OLED text display + integrated speed potentiometer
Safe Torque Off (STO) – SIL2 / PL d
IP20 open-chassis (frame size 4) with high-performance heatsink
Side-by-side mounting for space-critical installations
Operating temperature: –20 °C to +40 °C (derating up to 50 °C)
Applications Large industrial pumps & booster sets, high-capacity HVAC systems, heavy compressors, cranes & hoists, extruders, mixers, long conveyors, and any 22 kW three-phase motor needing powerful, dependable, and energy-saving control.
The ODE-3-440460-3F42 is the top-of-the-range E3 drive – trusted worldwide for delivering massive power and rock-solid reliability in an unbelievably small package.
In stock – same-day dispatch – full Invertek warranty
