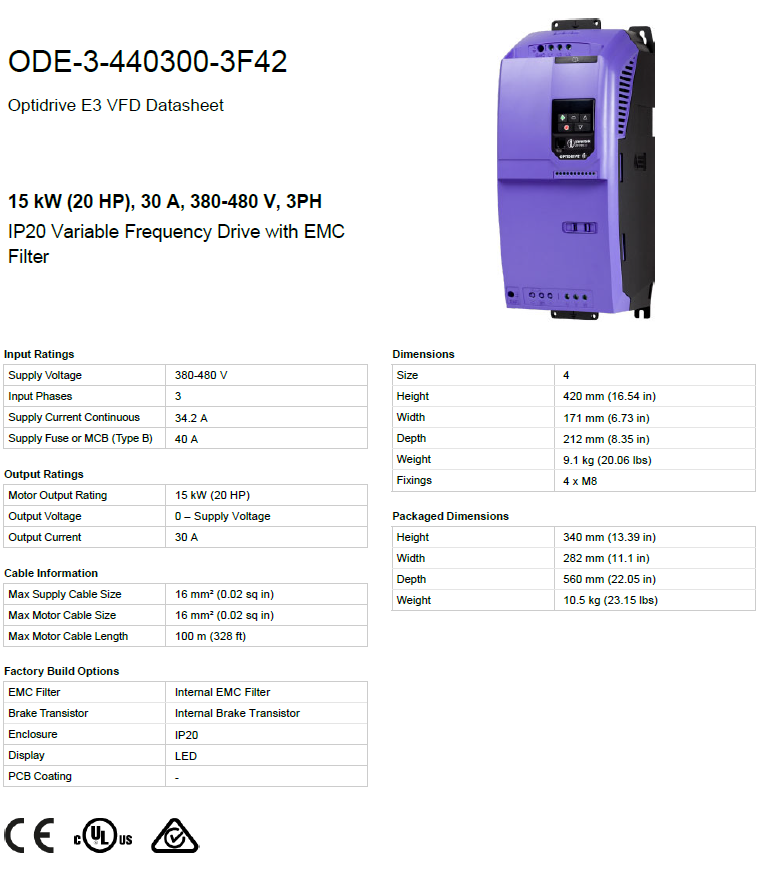

Invertek Optidrive E3 IP20 15 kW 3-Phase 400V AC Drive – ODE-3-440300-3F42
High-power, ultra-compact 15 kW (20 HP) sensorless vector drive delivering serious performance in the smallest physical size available.
Ideal for heavy industrial applications: large pumps, fans, compressors, cranes, extruders, mixers, and high-inertia machinery on 400 V three-phase systems.
Key Features
Power rating: 15 kW (20 HP)
Input: 3-phase 380–480 V ±10% (50/60 Hz)
Output: 3-phase 0–480 V, 0–500 Hz
Rated output current: 30 A
Overload: 150% for 60 seconds
Control mode: V/F and Energy Optimised Sensorless Vector
Only 14 basic parameters – fastest commissioning in its class
Built-in dynamic brake chopper
Integrated PI controller and EMC filter (C2)
Modbus RTU & CANopen as standard
Multilingual OLED text display + speed potentiometer
Safe Torque Off (STO) – SIL2 / PL d
IP20 open-chassis (frame size 4) with high-efficiency heatsink
Side-by-side mounting for minimum panel space
Operating temperature: –20 °C to +40 °C (derating up to 50 °C)
Applications Large process pumps, HVAC fans, compressors, cranes & hoists, extruders, agitators, conveyors, and any 15 kW three-phase motor needing robust, energy-saving speed control in the smallest possible enclosure.
The ODE-3-440300-3F42 is a top-tier model in the legendary Optidrive E3 series – trusted worldwide for delivering big power, reliability, and value in an ultra-compact package.
In stock – same-day dispatch – full Invertek warranty
