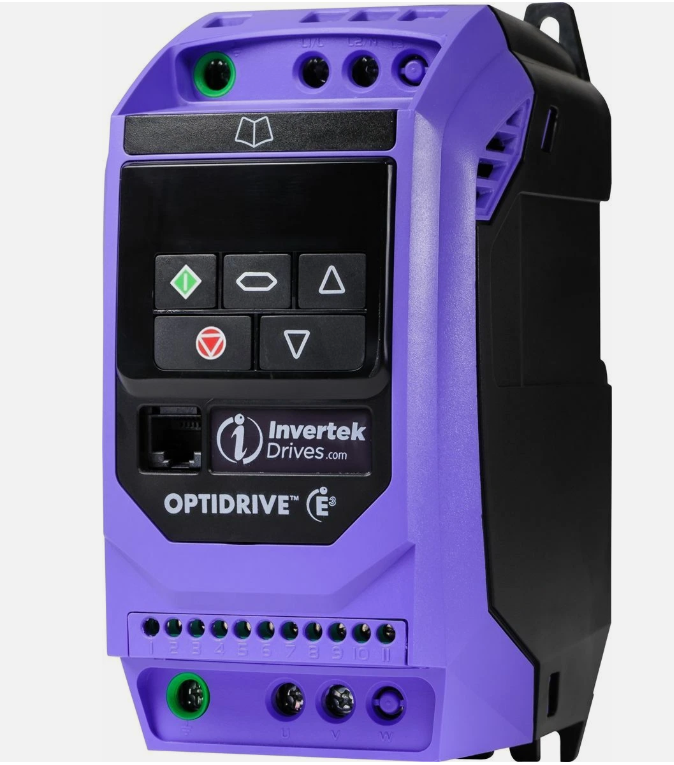

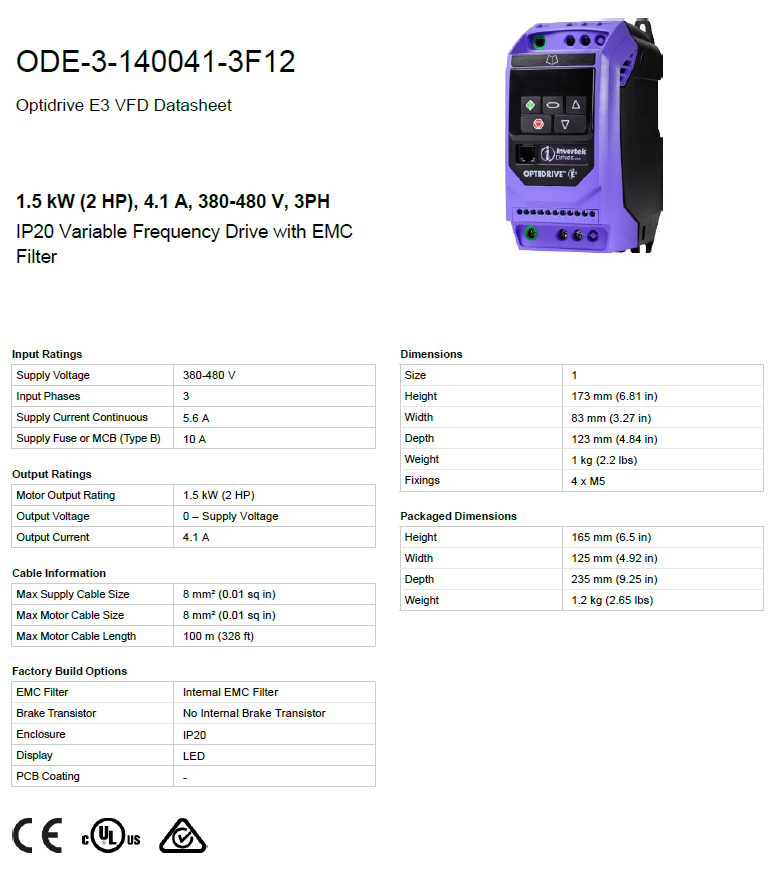

Invertek Optidrive E3 IP20 1.5 kW 3-Phase 400V AC Drive – ODE-3-140041-3F12
Compact, reliable, and easy-to-use sensorless vector variable frequency drive for applications up to 1.5 kW (2 HP).
Ideal for pumps, fans, conveyors, compressors, mixers, and general industrial machinery on a three-phase 400 V supply.
Key Features
Power rating: 1.5 kW (2 HP)
Input: 3-phase 380–480 V ±10% (50/60 Hz)
Output: 3-phase 0–480 V, 0–500 Hz
Rated output current: 4.1 A
Overload: 150% for 60 seconds
Control mode: V/F and Energy Optimised Sensorless Vector
Only 14 basic parameters for fast commissioning
Integrated PI controller and RFI/EMC filter
Modbus RTU & CANopen communications built-in
Intuitive keypad with LED display and speed potentiometer
IP20 enclosure (open chassis – perfect for panel mounting)
Compact design allows side-by-side installation
DIN-rail or screw mounting
Operating temperature: –20 °C to +40 °C (derating above 40 °C)
Applications Pumps, fans, conveyors, hoists, packaging machines, HVAC systems, woodworking equipment, and any standard 1.5 kW three-phase motor requiring simple, dependable speed control.
The ODE-3-140041-3F12 belongs to Invertek’s best-selling Optidrive E3 series – trusted worldwide for its robustness, tiny footprint, and exceptional value.
In stock – same-day dispatch – full Invertek warranty
