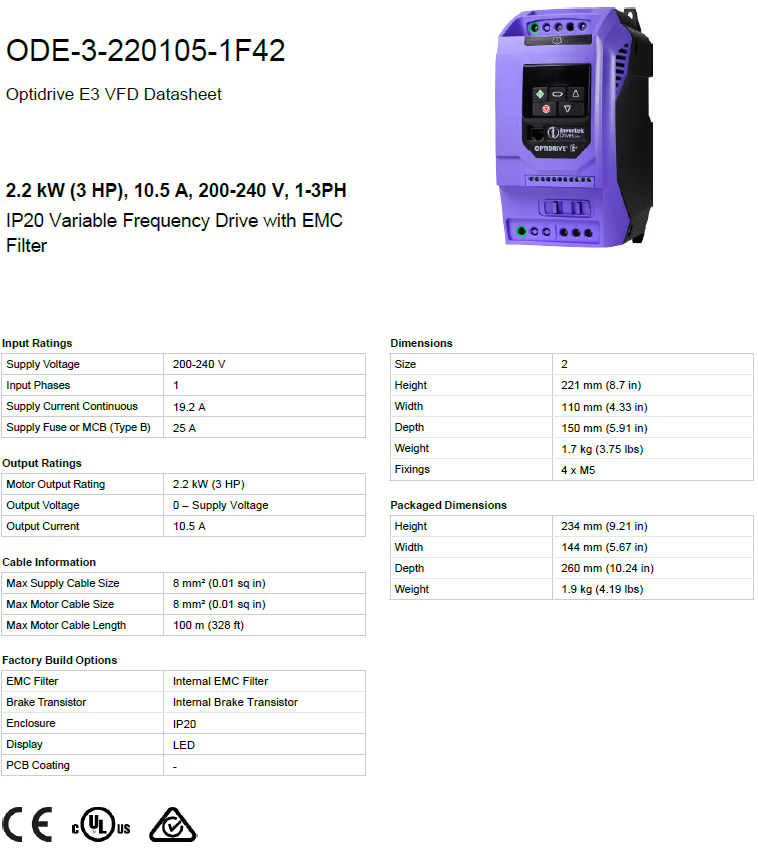

Invertek Optidrive E3 IP20 2.2kW 230V 1ph to 3ph AC Inverter Drive – ODE-3-220105-1F42
The Invertek Optidrive E3 ODE-3-220105-1F42 is a compact, reliable and cost-effective single-phase to three-phase variable frequency drive that delivers precise control of AC induction motors up to 2.2 kW (3 HP).
Ideal for pumps, fans, conveyors, compressors and general machinery, the Optidrive E3 offers exceptional performance and energy savings in one of the smallest packages in its class.
Key Features:
- Power Rating: 2.2 kW (3 HP)
- Input: 200–240V Single Phase (±10%) 50/60Hz
- Output: 200–240V Three Phase
- Output Current: 10.5 A (constant torque)
- IP20 enclosure – perfect for control panel mounting
- Simple 14-parameter setup – operational in under 60 seconds
- Integrated RFI/EMC filter
- Modbus RTU & CANopen communications as standard
- Built-in dynamic brake chopper
- Sensorless Vector Control for excellent low-speed torque
- Energy optimisation function for reduced operating costs
- Ultra-compact design with side-by-side mounting capability
- 50°C maximum ambient temperature with no derating
Why Choose the Invertek E3 Series?
The Optidrive E3 is trusted worldwide for its simplicity, robustness and outstanding value. Quick to install, easy to program and backed by Invertek’s industry-leading 5-year warranty (when commissioned via an approved partner), it’s the perfect choice for both new installations and retrofit projects.
Applications:
- Centrifugal pumps & booster sets
- Fans & ventilation systems
- Conveyor belts
- Compressors
- Mixers & agitators
- Packaging & processing machines
- Automatic doors, gates & barriers
- General light to medium industrial machinery
Order the Invertek ODE-3-220105-1F42 today and benefit from reliable, energy-efficient motor control at an exceptional price.
