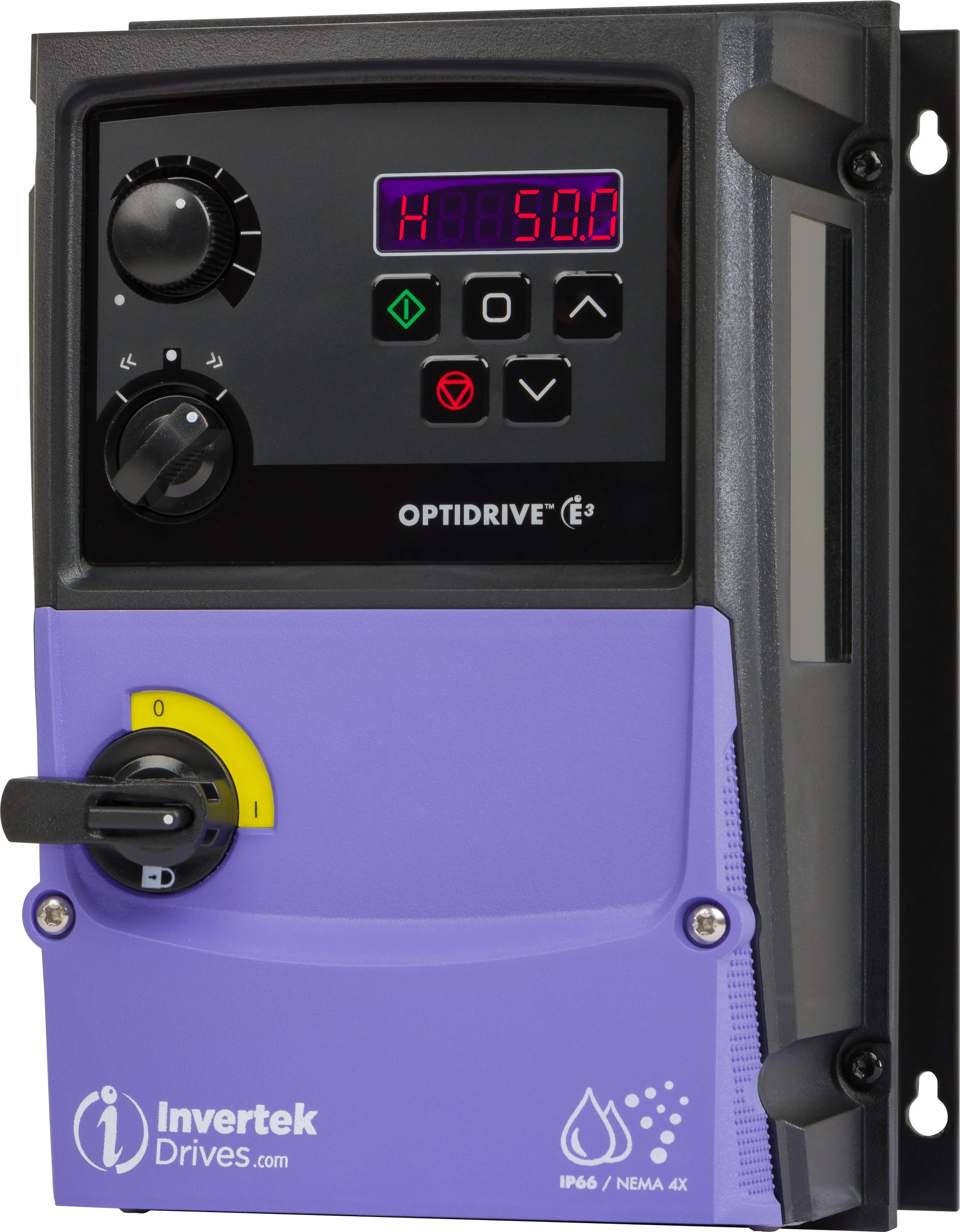

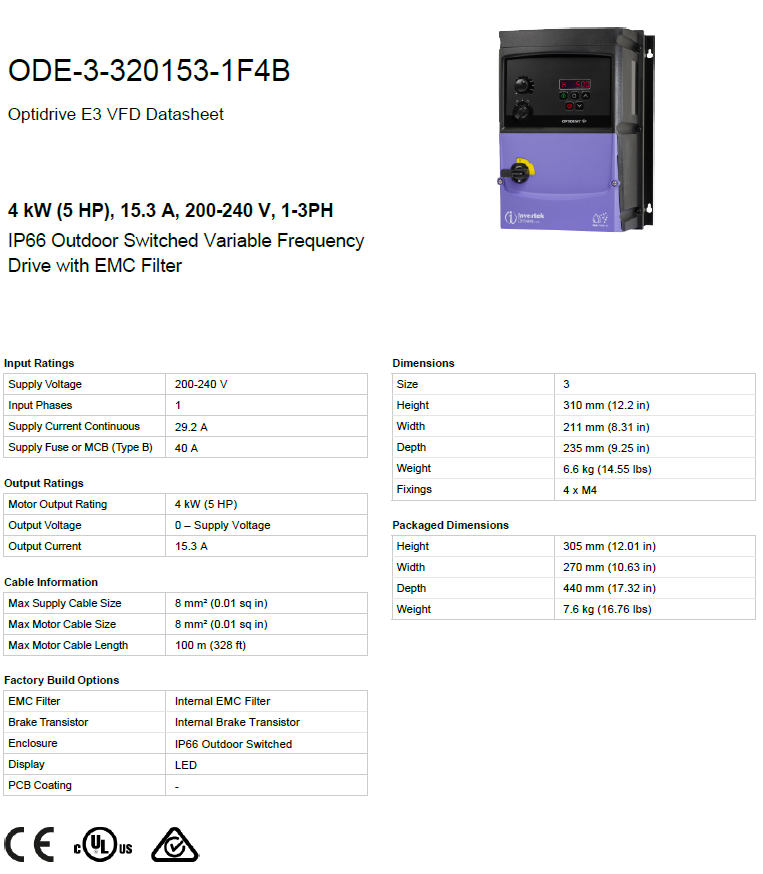

Invertek Optidrive E3 IP66 4kW 230V 1ph to 3ph AC Inverter Drive – ODE-3-320153-1F4B
The Invertek Optidrive E3 ODE-3-320153-1F4B is a powerful, fully sealed (IP66 / NEMA 4X) single-phase to three-phase variable frequency drive delivering precise control of AC motors up to 4 kW (5 HP).
Built for the harshest environments where dust, water jets and aggressive cleaning are constant threats, this high-power IP66 model brings Invertek’s renowned simplicity to demanding washdown and outdoor applications.
Key Features:
- Power Rating: 4 kW (5 HP)
- Input: 200–240V Single Phase (±10%) 50/60Hz
- Output: 200–240V Three Phase
- Output Current: 15.3 A (constant torque)
- IP66 / NEMA 4X indoor & outdoor rated – dust-tight & high-pressure hoseproof
- Switched version with built-in potentiometer, forward/reverse switch, mains disconnect isolator and lockable on/off switch
- Simple 14-parameter setup – operational in under 60 seconds
- Integrated EMC filter
- Modbus RTU & CANopen as standard
- Built-in dynamic brake chopper
- Sensorless Vector Control for excellent low-speed torque
- Energy optimisation function
- 50°C ambient rating with no derating
- Robust, UV-stabilised polycarbonate enclosure
Why Choose the Invertek E3 IP66 Series?
When you need serious power in the toughest conditions, this is the drive that keeps running. Ideal for food processing plants, quarries, agriculture and marine environments. Backed by Invertek’s 5-year warranty (when commissioned via an approved partner).
Applications:
- Large washdown conveyors & mixers
- Food & beverage production lines
- Quarry & aggregate processing
- Agricultural drying & ventilation systems
- Marine winches & deck equipment
- Wastewater treatment pumps
- High-pressure cleaning installations
Order the Invertek ODE-3-320153-1F4B today – unrivalled power and protection in one compact, easy-to-use package.
